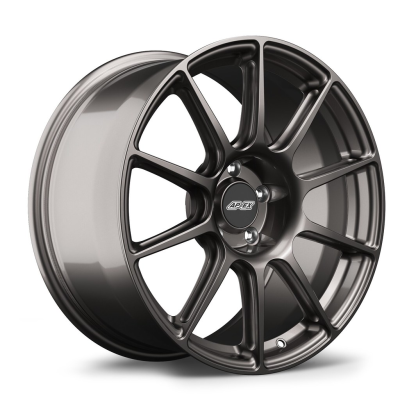

18x10.5" ET22 APEX SM-10 BMW Wheel

SM1018105ET22-5120-7256
"I" Beam Spokes

This is the most significant new feature we’ve added. Weight is reduced by CNC machining material out from the sides of each spoke. It’s expensive and avoided by almost every manufacturer, but we’ve made it affordable through volume production.


Beefier Lips

By saving weight elsewhere, we’ve added extra material where it counts. We beefed up the barrel’s inner lip to better handle the abuse from the street and track.


Factory Support

Like all our APEX wheels, The SM-10 supports all OEM hardware like OEM Roundel center caps, wheel lugs, valve stems, and TPMS sensors. No centering rings are needed either.


Concavity

Multiple face profiles are utilized to maximize spoke concavity and reduce weight on the SM-10 design. To maintain our great brake clearance the profiles and spoke curvature of this wheel is just like our EC-7 design.

The APEX Standard

FEA Optimization

We took more time than ever before on this step, revising and iterating our design to reduce weight as much as possible. After countless iterations we removed material from the sides of the spokes in a way that allowed us to increase strength over our previous designs.


Always Flow Formed

All APEX wheels feature Flow-Formed construction that utilizes rotary forging to produce a strong and lightweight barrel. The SM-10 is no exception.


True JWL & VIA Certification

You won’t find tricky terminology to cover up a lack of testing here. We always do real world crush testing and get real certificates from the Japanese Government again to prove it, just like we’ve always done.
Was: $474.00
Sale: $469.00
Save: 1%
Save: $5.00

Customize Your Item

- Choose your finish -
 * required
Qty:

Specifications

Diameter: 18"
Width: 10.5"
Offset: 22mm
Lug Pattern: 5x120mm
Centerbore: 72.56mm
Weight: ~21.00lbs
Profile 3; deep concavity
Available in 3 Finishes:
  • Race Silver
  • Anthracite
  • Satin Black
  • Manufacturing

    The SM-10 is produced using the Flow-forming technique. Flow-forming, which has also been called 'spin forging', produces a barrel with similar strength to that of a fully forged wheel. This significantly reduces weight in the barrel, which has the greatest impact on rotational mass and performance. By combining the strength of a forged, lightweight barrel and a more robust face design, we've produced a wheel that welcomes endurance racing, hard driving, and even potholes.

    Details

    Shipping Information

    • Item Requires Shipping
    • 25.0 lbs.
    • W21.0000” x H21.0000” x L13.0000”
    • $40.00
