AiM Solo 2 DL (OBDII K Line/CAN kit) GPS Lap Timer
X46SOLODLKC/X46SOLODLCR

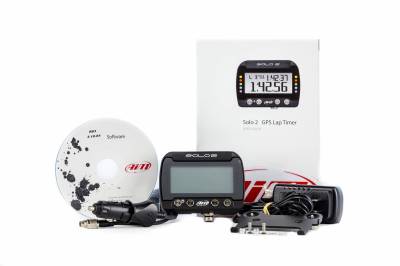

In the box: Solo 2 DL, USB cable, power adapter, 2m CAN/RS232 or OBDII-K Line cable, mounting bracket with screws, user manual, and software installation CD.
SOLO 2 DL: The brand new GPS lap timers for motorsports. The new automatic lap timer based on GPS technology, with an internal database of the main tracks of the world. Connectable to the ECU via choice of CAN or RS232 and OBDII-K Line.
Solo 2 DL, the Solo with ECU connection. More than 1,000 protocols for 1,000+ ECU in the database, for easily connect your Solo 2 DL to your Engine Control Unit and get a lot of information with just one cable. In case your ECU protocol is not in the database, no problem: an ECU Driver Builder is always available in the Race Studio 3 configuration software, and you will be able to create your protocol by yourself.
Coil RPM input: Solo 2 DL now features a digital input allowing to log RPM either from square wave signals (8-50 V signal) or pulse signals (150-450 V ignition coil trigger – primary circuit).
SmartyCam HD connection: The perfect connection: get all the data from your ECU, merge them with the GPS information and transmit everything to the SmartyCam HD, that will show them in graphical overlay in the video.
SOLO 2 DL: The brand new GPS lap timers for motorsports. The new automatic lap timer based on GPS technology, with an internal database of the main tracks of the world. Connectable to the ECU via choice of CAN or RS232 and OBDII-K Line.
Solo 2 DL, the Solo with ECU connection. More than 1,000 protocols for 1,000+ ECU in the database, for easily connect your Solo 2 DL to your Engine Control Unit and get a lot of information with just one cable. In case your ECU protocol is not in the database, no problem: an ECU Driver Builder is always available in the Race Studio 3 configuration software, and you will be able to create your protocol by yourself.
Coil RPM input: Solo 2 DL now features a digital input allowing to log RPM either from square wave signals (8-50 V signal) or pulse signals (150-450 V ignition coil trigger – primary circuit).
SmartyCam HD connection: The perfect connection: get all the data from your ECU, merge them with the GPS information and transmit everything to the SmartyCam HD, that will show them in graphical overlay in the video.
Availability: Usually in stock.
Pricing:
$799.00
Description
In addition to all of Solo's powerful functions, SoloDL can be connected to the Engine Control Unit (ECU) of your car to sample, record and display. Additionally this data can be displayed on optional AiM SmartyCam HD generated video. Additional sensors and complicated wiring are not required with ECU supplied information. You can get all the info you need to improve your driving skills like RPM, throttle position, brake pressure and much more.
There are many different ECU protocols and AiM has developed a huge database to make connection to virtually all possible stock and racing ECUs.
There are many different ECU protocols and AiM has developed a huge database to make connection to virtually all possible stock and racing ECUs.
ECU Connection
Additional sensors and complicated wiring are not required with ECU supplied information. You can get all the info you need to improve your driving skills like RPM, throttle position, brake pressure and much more.
There are many different ECU protocols and AiM has developed a huge database to make connection to virtually all possible stock and racing ECUs.
Hardware compatibility: ECUs transmit data according to three different standards: OBDII connection which is typical of stock/production cars and CAN or RS232 connections which are the standard for racing/aftermarket ECUs.
SoloDL is compatible with all of these standards thanks to the huge AiM database of ECU protocols that is constantly updated and freely downloadable here.
To connect Solo to your car, you need to choose the cable that fits to your car: SoloDL comes with your choice of cable for stock/production cars or for racing/aftermarket ECUs.
ECU selection: with RaceStudio2 software it is possible to select from more than 500 specific ECU protocols, allowing Solo to read, record, and display the ECU data.
Pages configuration: like Solo, SoloDL allows fully User customizable pages to be configured with the desired data.
Data analysis: after each test, it is possible to analyze all of the data recorded. You will understand your performance at all positions on the track with the powerful Race Studio 2 professional software. Your data will be displayed in graphs, histograms and tables. This software is currently used by thousands of users all around the world.

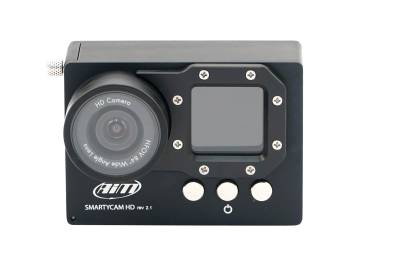

SmartyCam HD Connection
SoloDL can easily be connected to the AiM SmartyCam HD, creating an even more powerful system.
The on-board camera accepts data from SoloDL, both GPS and ECU based data, and overlays the data directly onto the videos. SmartyCam HD can read the ECU data and GPS laptimes sampled by SoloDL.
On SoloDL display you can see SmartyCam HD status details i.e. the amount of free microSD card memory, battery level, recording status, diagnostic messages, etc.
The on-board camera accepts data from SoloDL, both GPS and ECU based data, and overlays the data directly onto the videos. SmartyCam HD can read the ECU data and GPS laptimes sampled by SoloDL.
On SoloDL display you can see SmartyCam HD status details i.e. the amount of free microSD card memory, battery level, recording status, diagnostic messages, etc.
Details
- X46SOLODLKC/X46SOLODLCR
- X46SOLODLKC/X46SOLODLCR
- AiM Sports
- Usually in stock.
- New
Categories
Shipping Information
- Item Requires Shipping
- 6.0 lbs.
- W6.0000” x H9.0000” x L4.0000”
- Free FedEx / UPS Ground Shipping!
- This item ships in its own box.
