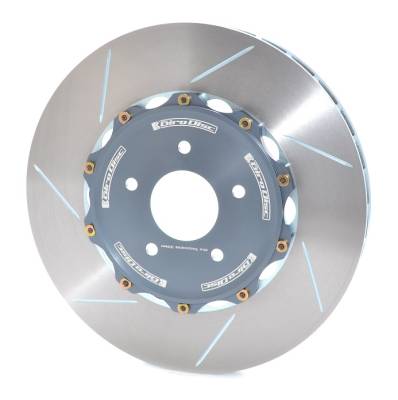

Girodisc A1-216 Audi B9 RS5 Front 2-Piece Rotor Upgrade
A1-216
The Girodisc system is a direct replacement for the OE disc with the addition of our provided caliper spacers. Our rotor is slightly larger than the OEM rotor at 380mm versus 365mm providing greater braking force and cooling capacity.
The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 8 or 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Sold/priced per pair
The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum. The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc. The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 8 or 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
Sold/priced per pair
Pricing:
$1,400.00
Description
The central hat section of the disc is made from 6061-T6 aircraft specification aluminum. The disc is made from cast iron to the same specification and material as used by professional racing organizations. It is a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.
The rotor and hat have a floating mount system, which utilizes 10 high strength alloy steel drive pins, manufactured by Girodisc to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
When used with performance pads and hi-temp fluid, you have what amounts to a truly amazing solution to overheating or warping rotors.
Sold/priced in pairs.
The rotor and hat have a floating mount system, which utilizes 10 high strength alloy steel drive pins, manufactured by Girodisc to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.
Once the Girodisc system is in place, simply replace the cast iron rotor when needed.
When used with performance pads and hi-temp fluid, you have what amounts to a truly amazing solution to overheating or warping rotors.
Sold/priced in pairs.
Details
- A1-216
- A1-216
- Girodisc
- New
Categories
Shipping Information
- Item Requires Shipping
- 50.0 lbs.
- Free FedEx / UPS Ground Shipping!
