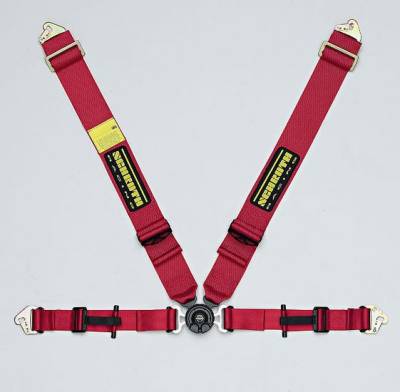

Schroth Profi II ASM FE

SR 20270, SR 20070, SR 20170, SR 20970, SR 91320-1, SR 91320-9, SR 91320-0, SR 91320-2, SR 25270
The Profi II ASM FE is essentially the same as the Profi II ASM, except it features a Push-Button Cam lock for applications where street driving is anticipated. The red push button that says "Press" is necessary to retain street legality and so an EMT that shows up at an accident scene will know how to release your restraint. The FE version also features sewn in bendable Bolt-In tabs for the lap belt attachment points, for use in applications where space is limited. Because of the sewn in end fittings, the Flexi lap belt is not available in this harness. It is designed to be used as a four point system. For this reason it is perfect for use in Driver Education cars or any other application where stock seats are retained. A seat that was not originally desiged for use with a racing restraint should never be modified to accept an sub strap. The Profi II ASM incorporates Schroth's legendary ASM (Anti-SubMarining) technology that is the only thing like it on the market. ASM is an extra fold of material sewn into the right shoulder belt that elongates at a different rate than the outboard belt. This allows your upper torso to twist slightly. On the rebound phase, your torso is planted firmly back in the seat rather than allowed to slide under the lap belt. You can add a dual sub strap to make this belt into a 6 point at any time. We have tested this harness with a HANS device and the results were great. You can use a 4 point ASM Harness with a HANS device. The lap belts provided with this harness are only available in the Bolt-In style as they are most commonly needed in setups requiring street legality. If you need different setups, please call or email us. These are available in both Pull-up and Pull-down. The Shoulders come with wrapped in B23C bolt-in brackets.

Options
  • Pull Up (PU) or Pull Down (PD)
  • Left (LT) or Right (RT)
  • Colors: Blue (BLU), Red (Red), Black (BLK), and Silver (SLV)
  • Pricing: $529.00

    Customize Your Item

    - Select Side / Color / Lap Adjust -
     * required
    Qty:
    Free FedEx / UPS Ground Shipping!

    Description

    The Profi II ASM incorporates Schroth's legendary ASM (Anti-SubMarining) technology that is the only thing like it on the market. ASM is an extra fold of material sewn into the inboard shoulder belt that elongates at a different rate than the outboard belt. This allows your upper torso to twist slightly. On the rebound phase, your torso is planted firmly back in the seat rather than allowed to slide under the lap belt.

    You can add a single or dual sub strap to make this belt into a 5 point or 6 point at any time. We have recently tested this harness with a HANS device, and the results were great. You can use 4 point ASM Harnesses with a HANS device.

    The lap belts provided with this harness are only available in the Bolt-In style as they are most commonly needed in setups requiring street legality. If you need different setups, please call or email us. These are available in both Pull-up and Pull-down.

    The Shoulders come ready to be wrapped around a roll-bar. Snap or Bolt attachments can be purchased separately. Because of the ASM, these belts are sided. Be sure to install them correctly: the ASM fold should be on the Inboard shoulder belt.

    Please note, Cam locks can be swapped, so if you are interested in this harness with a standard RFR cam lock, it can be purchased separately.

    Specifications

  • Inboard Lap Belt (Belts are sided)
  • Shoulder: LV7 Wrap
  • Lap: Sewn-in B23A Bolt-In Brackets
  • Subs: Available Separately
  • FIA tags standard
  • Included Hardware

  • 2 SG10 7/16"x25mm bolts
  • 4 S3 Wavy Washers
  • Details

    • SR 20270, SR 20070, SR 20170, SR 20970, SR 91320-1, SR 91320-9, SR 91320-0, SR 91320-2, SR 25270
    • SR 20270, SR 20070, SR 20170, SR 20970, SR 91320-1, SR 91320-9, SR 91320-0, SR 91320-2, SR 25270
    • Schroth Racing
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 5.0 lbs.
    • W12.0000” x H4.0000” x L4.0000”
    • Free FedEx / UPS Ground Shipping!
    • This item will require a special quote for shipping charges.
